High-Pressure Fracturing Manifold / Multi-Phase Flow Control Valve Assembly

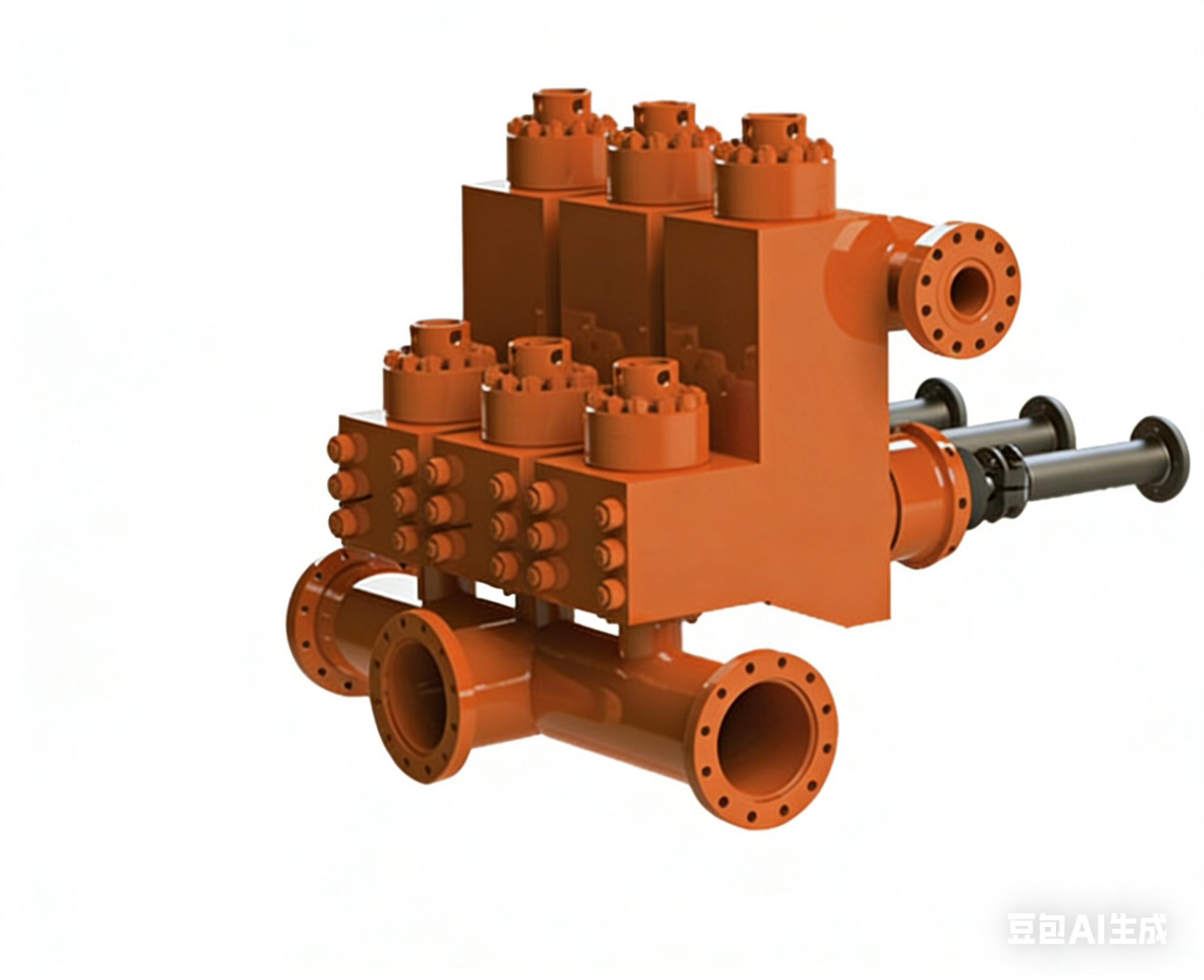

Heavy-Duty High-Pressure Fracturing Manifold / Flow Control Valve
Our High-Pressure Fracturing Manifold is a critical well control and fluid management system designed for oilfield fracturing, cementing, and well testing operations. It integrates multiple high-pressure valves, pipe spools, and flanges to control the direction, pressure, and flow of drilling fluids, fracturing fluid, and oil/gas mixtures in extreme downhole environments.
✅ Key Advantages
- Extreme Pressure Resistance: Fabricated from forged alloy steel (AISI 4130/4140) with integral forging and stress relief treatment. It can withstand operating pressures up to 105MPa (15,000 PSI) and temperatures ranging from -29°C to 121°C, ensuring structural integrity under severe hydraulic shock.
- Precision Flow Control: Equipped with robust gate valves or choke valves that provide tight shut-off and smooth flow regulation. The modular design allows for easy isolation of individual sections for maintenance, minimizing rig downtime.
- API Standard Compliance: Fully manufactured to API 6A & API 16C standards, with interchangeable flanges (RTJ/Blind flange) and standard connection dimensions. Suitable for international well site operations.
- Safe & Reliable: Integrated with redundant safety valves and pressure gauges ports to monitor system pressure. The corrosion-resistant epoxy paint or galvanized finish ensures long service life in harsh onshore and offshore environments.
- Customizable Configurations: Available in single-stage, two-stage, or three-stage configurations. Options include manual handwheel, pneumatic, or hydraulic actuation to meet specific operational requirements.
🎯 Why Choose Us?
We are a professional manufacturer of oilfield well control equipment. Our fracturing manifolds undergo strict pressure testing (API 16C) before shipment to guarantee zero leakage. We offer one-stop solutions for your entire fracturing & well testing fluid system, with competitive pricing and fast delivery. Contact us for your custom project quote!
