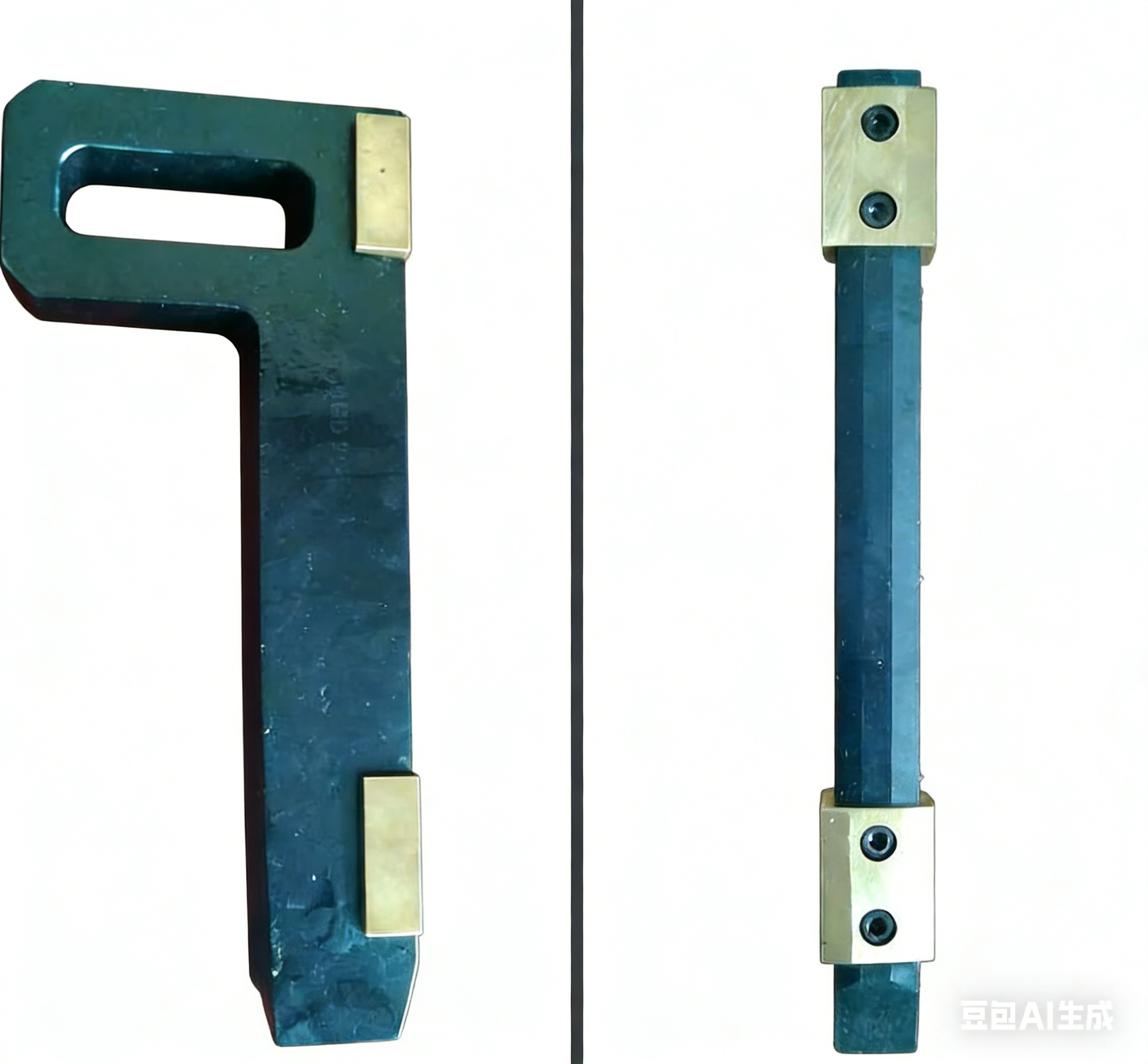

Premium Mud Pump Crosshead Insert Assembly / Crosshead Guide Shoe for F1300/F1600 Triplex Pumps
High-Performance Mud Pump Crosshead Insert Assembly
Our Mud Pump Crosshead Insert Assembly is a critical wear component designed for the power end of F1300, F1600, 3NB series triplex mud pumps. It is installed between the crosshead and the pump frame guide rail, guiding the linear reciprocating motion of the crosshead, absorbing impact loads, and reducing friction wear during high-pressure drilling operations.
✅ Key Advantages
- Dual-Material Durability: Features a high-strength alloy steel (40Cr/35CrMo) base for structural rigidity, paired with premium brass/bronze wear pads for exceptional self-lubricating performance and wear resistance, effectively extending the service life of both the insert and crosshead.
- Precision Guiding Performance: Precision CNC machining ensures strict dimensional tolerance and flatness, providing smooth, low-friction linear guidance, eliminating crosshead jamming and vibration, and ensuring stable operation of the mud pump.
- Easy Maintenance & Replacement: The modular insert design allows for quick replacement of worn parts without replacing the entire crosshead, significantly reducing maintenance costs and rig downtime.
- Wide Compatibility: Direct replacement for original OEM parts, compatible with F1300, F1600, 3NB-1000, 3NB-1300, 3NB-1600 and other mainstream triplex mud pumps, meeting API 7K industry standards.
- Impact & Load Resistance: Engineered to withstand extreme alternating loads and impact forces from high-pressure mud pumping, ensuring reliable performance in harsh onshore and offshore drilling environments.
🎯 Why Choose Our Crosshead Insert Assembly?
We strictly follow API 7K quality standards, with 100% dimensional inspection and material testing before delivery. We provide one-stop supply of all mud pump power end and fluid end parts, with fast delivery and competitive bulk pricing. Contact us for custom specifications and technical support!
